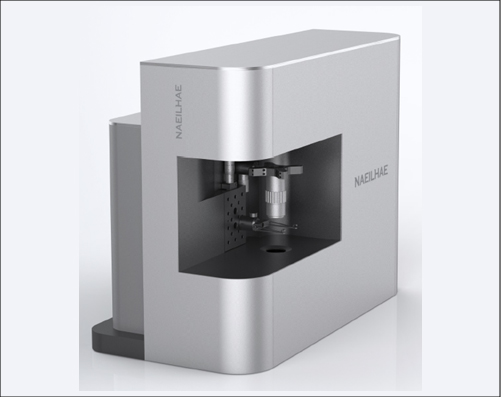

T-Inspecscopy is developed for measuring transmissive object. Single Image Reconstruction Digital Holography algorithm, which is our company’s individual software, is embedded in T-Inspecscopy. T-Inspecscopy is designed with optimized hardware system for better lateral and longitudinal (axial) accuracies. Also, possible to customize the T-Inspecscopy in various types, and provide optimized products to our customers.

Main features and strengths

Features
Simple hardware system
Minimize noise &
optical aberrations
Single image &
3D reconstruction
Parallel processing
using GPU
Strengths
Customize hardware system
High precision
(Sub-nano)
Robust system
Real-time processing
(Under 0.1 sec)
No pre-process

Product specifications

기본정보입력
Models NT-INS5 NT-INS20 NT-INS50 NT-INS100
Light source Single wavelength LASER
Pixel size 7.4μm
Objective lens 5x NA 0.14 20x NA 0.29 50x NA 0.42 100x NA 0.55
Axial resolution 2.47nm (Theoretical)
Field of view 3.0mm x 3.0mm 0.76mm x 0.76mm 0.3mm x 0.3mm 0.15mm x 0.15mm
Working distance 34mm 20mm 13mm 6mm
Bit depth 8-bits
Imaging speed 15 fps (Max. 50 fps)
Sample preparation No labeling
Output data 1D, 2D, 3D, 4D, Hologram analyze data

The specifications mentioned above can be changed according to the customer's request.
If you would like a customized specification, please contact contact@naeilhae.com

Applications

  • Glass surface inspection
  • Micro-lens inspection
  • Camera module inspection
  • Cell analysis
  • Disease diagnosis (ex. Malaria, diabetes)
  • Red or green tide prediction
